Tower Design and Analysis Software

DE Tower Software Specification

Structure Types

Self-Supported Towers

Guyed Masts

Monopoles

Design Standards
  • Eurocodes EN 1993-3-1 and EN 1991-1-4
  • UK National Annexes BS EN 1993-3-1:2006/NA, BS EN 1991-1-4/NA and BS PD 6688-1-4:2015
  • Irish National Annexes I.S. EN 1991-1-4:2005 /NA and I.S. EN 1993-3-1:2006 /NA:2010
  • French National Annexes NF EN 1991-1-4/NA and NF EN 1993-3-1/NA
  • Belgium National Annexes NBN EN 1991-1-4 ANB and NBN EN 1993-3-1 ANB
  • Luxembourg National Annexes EN 1991-1-4:2005/AN-LU:2011 and EN 1993-3-1:2006/AN-LU:2011
  • Germany National Annexes DIN EN 1991-1-4/NA DIN EN 1993-3-1/NA
  • Finland National Annexes SFS-EN 1991-1-4 and SFS-EN 1993-3-1
  • Norway National Annexes NS-EN 1991-1-4 and NS-EN 1993-3-1
  • USA ANSI/TIA-222-G-2005
  • Canada CSA S37-13
  • Australia AS 3995-1994, AS NZS 1170.2:2011
Analysis Types

Linear Elastic

Non-Linear

Modal Analysis

System of Units

Metric

US Units / Imperial

de-tower-software

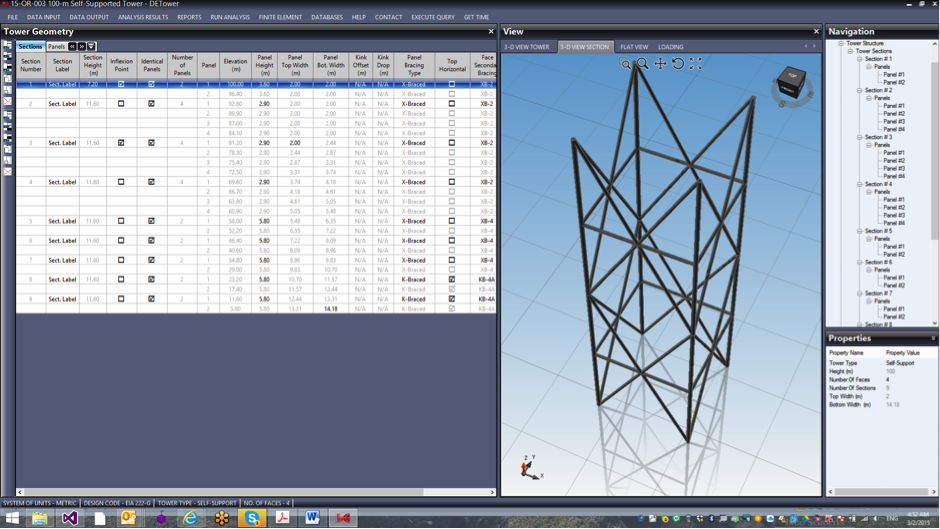

DE Tower software was developed by a team that has several decades of tower structural design experience and developing engineering software applications. The software includes a multitude of design standards around the globe and uses an intuitive graphical user interface. It is also unique by having full traceability of calculated data for loading and member capacities.

Tower Design Center

Eurocode Implementation – Partial Factor for Actions
Eurocode UK National Annex Implementation, PD 6688 1991-1-4:2015

DE Tower Demo Order Form

For a DE Tower software demo, please fill out the request form below. After we review the form, we will send you a time limited (usually 30 days) license of our software.
